PP Filter Press Cloth | Filter Press Panel Cloth | Butterfly Cloth | CGR Cloth
Brand: Infinity Industries
Product: Filter Press Cloth Panel
Material: Polypropylene (PP) / Polyester / Nylon / Cotton – as per application
Type: Filter Press Panel Cloth / Butterfly Type / CGR / Gasketed / Non-Gasketed
Application: Solid-Liquid Separation & Industrial Filtration
Product Description

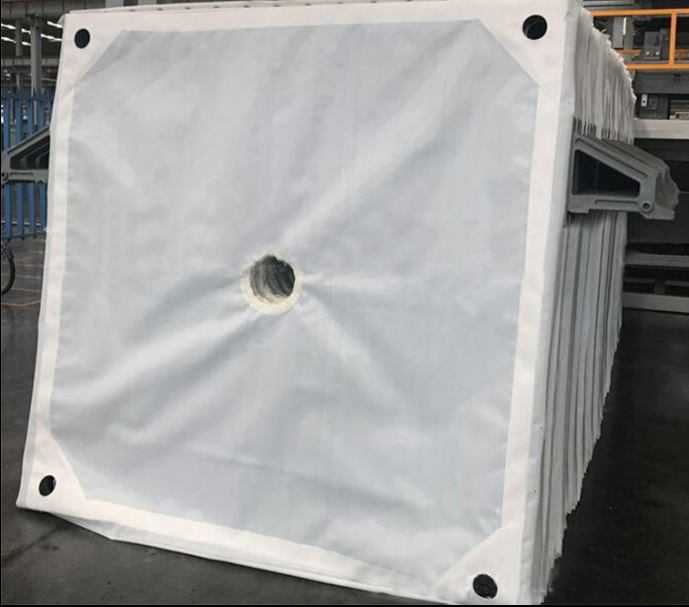

Infinity Industries supplies Filter Press Cloth Panels designed for industrial filter press machines used for efficient solid-liquid separation.
Filter press cloth is the primary filtration media installed over the filter plate. During filtration, slurry is pumped into the filter press, liquid passes through the filter cloth and drainage channels, while suspended solids are retained to form a filter cake.
We supply custom-made filter press cloth panels according to filter plate size, plate design, feed-hole arrangement, filtration requirement and slurry characteristics.
Our filter press cloths are available in PP multifilament, PP monofilament, mono-multi, polyester, nylon and other suitable filtration media, depending on the application.
Available Filter Press Cloth Types
PP Multifilament Filter Press Cloth
PP Monofilament Filter Press Cloth
PP Mono × Multi Filter Cloth
PP Spun Filter Cloth
Butterfly Type Filter Press Cloth
CGR / Gasketed Filter Press Cloth
Non-Gasketed Filter Press Cloth
Drape-Over Filter Cloth
Centre Feed Filter Cloth
Corner Feed Filter Cloth
Membrane Filter Press Cloth
Customized Filter Press Cloth Panel
Technical Specifications
Parameter Specification
Material / MOC PP, Polyester, Nylon, Cotton & other suitable media
Cloth Type Multifilament / Monofilament / Mono-Multi / Spun
Filter Plate Type Chamber / Recessed / Plate & Frame / Membrane
Cloth Design Panel / Butterfly / Drape-Over / CGR
Feed Arrangement Centre Feed / Corner Feed / As per plate design
Micron Rating Application-specific; commonly selected according to slurry
GSM As required by application
Thickness As required by filtration application
Weave Plain / Twill / Satin / Customized
Edge Finish Stitched / Reinforced / Gasketed / Customized
Plate Size As per filter press plate
Colour Generally white; other options subject to material
Operating Temperature Selected according to cloth material and process conditions
Pressure Suitability Selected according to filter press operating pressure
Manufacturing Custom-cut and stitched as per drawing / sample / plate
Country of Origin India
Standard industrial filter-cloth suppliers offer multiple feed configurations, gasketed/non-gasketed designs, materials and weave constructions, reinforcing the importance of matching the cloth to the specific filter press.
Common Filter Press Cloth Sizes
Filter cloth panels can be supplied for various filter press sizes, including:
12' × 12' | 18' × 18' | 24' × 24' | 30' × 30' | 36' × 36' | 40' × 40' | 470 × 470 mm | 630 × 630 mm | 800 × 800 mm | 915 × 915 mm | 1000 × 1000 mm | 1200 × 1200 mm | 1500 × 1500 mm | Other customized sizes
The actual finished cloth dimensions depend on the plate manufacturer, plate design and fixing arrangement, so the plate drawing, sample cloth or exact plate dimensions should be confirmed before production.
Key Features
High-quality filtration media
Custom-made according to filter plate dimensions
Good mechanical strength
Suitable for repeated filtration cycles
Chemical-resistant options available
Available in different micron ratings
Different weave patterns available
Centre-feed and corner-feed options
Gasketed and non-gasketed designs
Butterfly-type cloth with feed sleeve/barrel neck
Suitable for industrial sludge and process filtration
Replacement cloths available for existing filter presses
Infinity Industries' current product listings also include PP/monofilament cloth, butterfly-type cloth and customized filter press cloth for chemical and industrial applications.
Applications
ETP / STP Sludge Dewatering
Used for separation and dewatering of industrial and municipal wastewater sludge.
Chemical Industry
Suitable cloth constructions can be selected for chemical slurry, dyes, pigments, intermediates and process filtration.
Pharmaceutical Industry
Used for suitable pharmaceutical and process-filtration applications where the cloth material and construction meet the process requirements.
Food & Beverage
Used for filtration of process liquids and suitable food-industry slurries.
Oil & Edible Oil
Filter press cloth panels can be configured for oil and edible-oil filtration applications.
Mining & Minerals
Used for mineral slurry, concentrate, tailings and other solid-liquid separation applications.
Ceramic Industry
Suitable for ceramic slurry, clay and mineral-process filtration.
Textile Industry
Used for textile wastewater, dye sludge and process-sludge dewatering.
Metal & Surface Treatment
Suitable for metal hydroxide sludge, plating sludge and other industrial wastewater applications.
How to Select the Correct Filter Press Cloth
For accurate cloth selection, provide:
Filter press plate size
Plate type
Number of plates
Existing cloth sample/photo/drawing
Centre feed or corner feed
CGR / gasketed / non-gasketed requirement
Slurry type
Solid particle size
Slurry pH
Operating temperature
Operating filtration pressure
Required filtrate clarity
Required cake moisture / cake release
Required cloth micron / permeability
This information allows Infinity Industries to recommend the appropriate cloth material, yarn construction, weave, GSM, thickness and panel configuration.
Why Choose Infinity Industries?
Infinity Industries, Ahmedabad supplies filter press machines, filter plates, filter press cloths and allied filtration accessories for industrial applications.
We can provide filter press cloth panels according to customer plate size, machine model, drawing or existing cloth sample.
Suitable for:
Chemical | ETP | STP | Pharma | Textile | Mining | Minerals | Ceramic | Food | Oil | Dyes & Pigments | Metal Treatment | Industrial Sludge
Product Enquiry
For quotation, please share:
Filter Press Size + Plate Size + Plate Type + Cloth Type + Quantity + Application/Slurry Details
Our team can review the requirement and provide the suitable cloth configuration.
